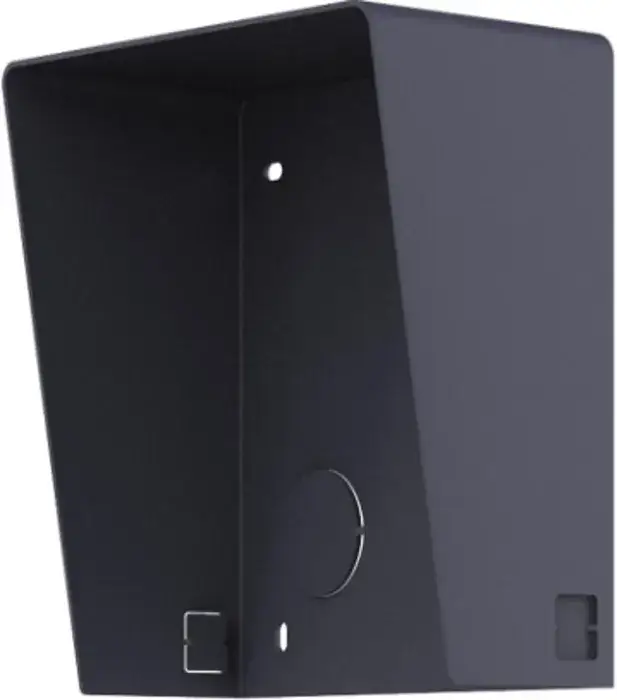

גגון לאינטרקום 3 מודולים על הטיח Hikvision DS-KABD8003-RS3

Specification :

• General
• Working Temperature-40° C to +60° C (-40° F to 140° F)
• Working Humidity10% to 95%
• Weight702.3g
• Dimension (W × H × D)325.8x 116.4×58 mm (12.83″ x 4.58″ x 2.28″)
• Installation

  1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter.

  Drill 4 holes align to the screw holes on the sticker.

  The suggested size of hole is 6 (diameter) × 25 (depth) mm.

  2. Remove the sticker and insert the expansion sleeves into the screw holes.

  Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.

  Thread the module-connecting lines across the thread holes of the frame.

  Pass the main unit connecting lines across the thread hole to the top grid.

*הנתונים לפי אתר היצרן.
