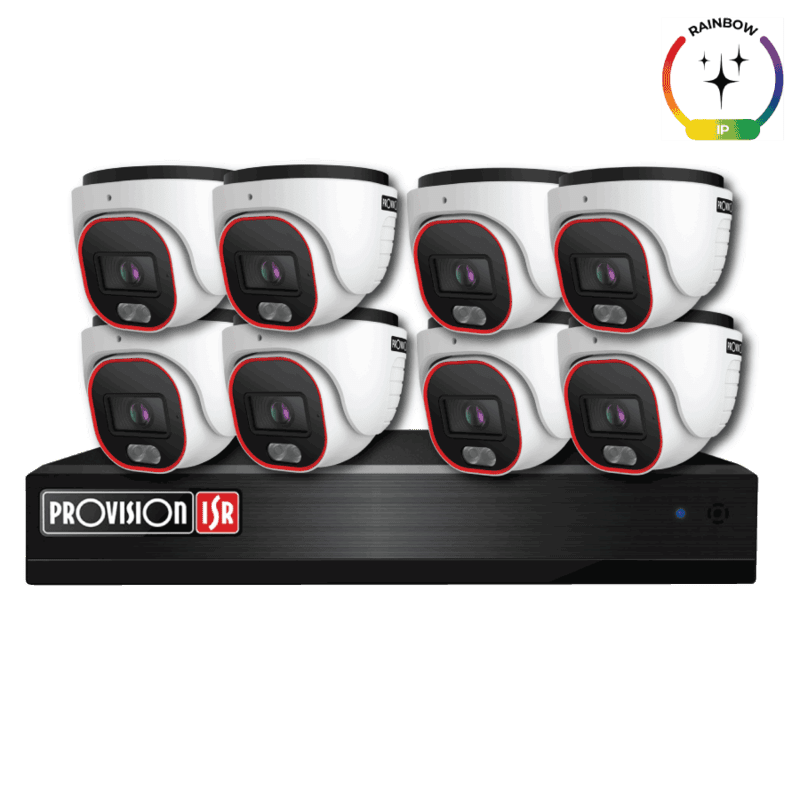

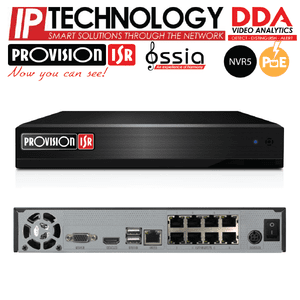

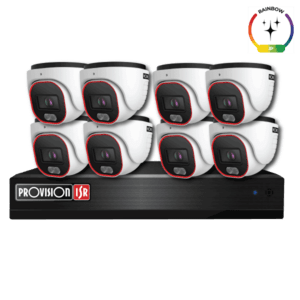

| דגם NVR | NVR5-8200PX+MM |

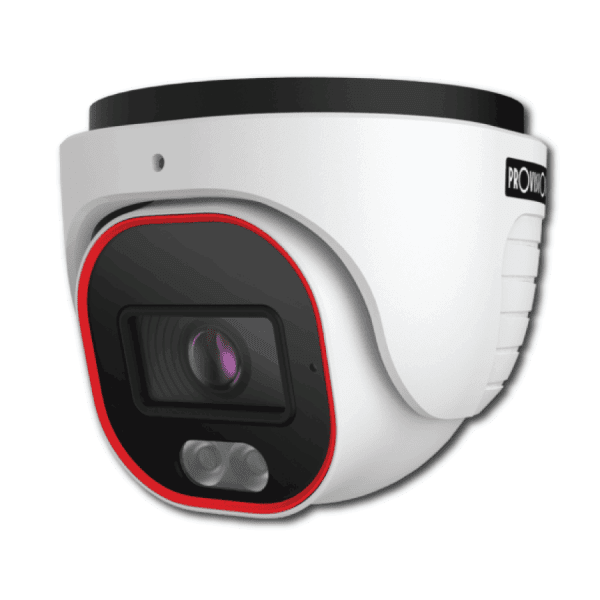

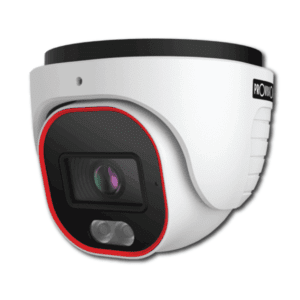

| דגם מצלמה | DL-340IPERN-36 |
| תושבת אחורית למצלמה | כלול – PR-JB12IP66 |
| יצרן | PROVISION-ISR |
| אחריות | 24 חודשים בכפוף לאחריות יצרן |
| Video Input | 8Ch Over Network / PoE Direct Connection |
| Video Output | HDMI / VGA (1080P, 1280×1024, 1024×768) |
| Video View Mode | Mirrored |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch – 5MP 4/8Ch – D1 |
| Audio Output | Based on IPC Only |
| Compression | G.711A/G.711U |
| Two Way Audio | No |
| Analytics Channels | 8Ch (Requires supporting IPC) |
| Supported Analytics | Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object
Monitoring, Object Counting (DDA), Crowd Gathering, P |
| Face Recognition Rate | N/A |
| Incoming | 40Mbps |
| Outgoing | 40Mbps |
| Real-Time Recording | 8CH 5MP Real-Time |
| Record Type | Video / Video + Audio |
| 8MP | N/A |
| 5MP and lower | 240FPS (NTSC)/200FPS (PAL) |
| Master stream over network | Up to 8CH@Recording Resolution |
| Resolution | Depends on IPC |
| Sub-Streams over Network | Up to Outgoing Bandwidth Capacity |
| General Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| User Access | 5 Users Online with Professional Autorithy Management |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera.(All Limited to 4Ch Live View / Playback) |
| Plug-in based Web-Browser | Internet Exporer |
| Local Playback | 8Ch |
| Remote Playback (Web, App, VMS) | 8Ch |
| Search Mode | DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS |
| USB | 2 USB 2.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm Input | Based on IPC Only |
| Alarm Output | Based on IPC Only |
| HDD Storage | 1 |
| Storage E-SATA | None |
| Max Capacity | Up to 6TB |
| RAID | N/A |
| Connection | Via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | N/A |
| Network Ethernet | 10/100Mbps self-adaptive Ethernet interface |
| Network Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X,
SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profle T/G, ONVIF Version 20.12) |

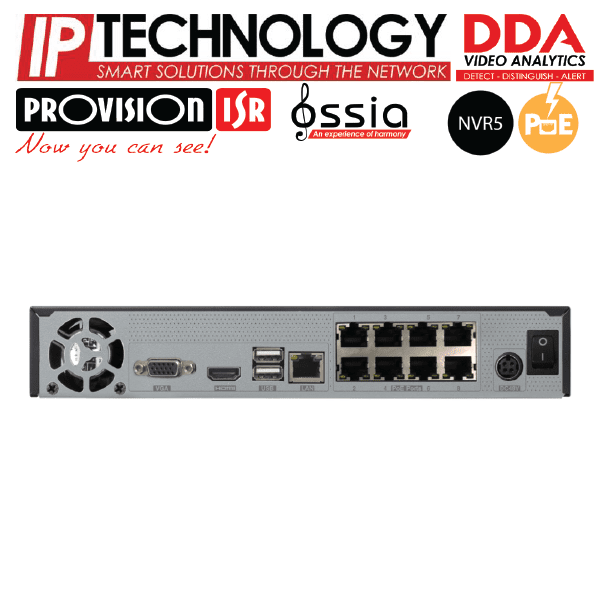

| PoE Ports | 8xRJ45 |
| PoE Speed | 10/100Mbps (10Mbps Under CCTV Mode) |
| PoE Standard | PoE (IEEE802.3AF) |
| PoE CCTV Mode | Yes (Up to 200m and 10Mbps bandwidth) |
| PoE Total Power | 120W (Average 12.5W per Channel) |
| Max. Power Output (Per Ch.)PoE | ~14W* |
| Power Supply | DC48V/2.5A |
| Power consumption (No HDD) | 5W |
| מידות | W255xD220xH45mm |
| Operation Temperature | 0-50C |
