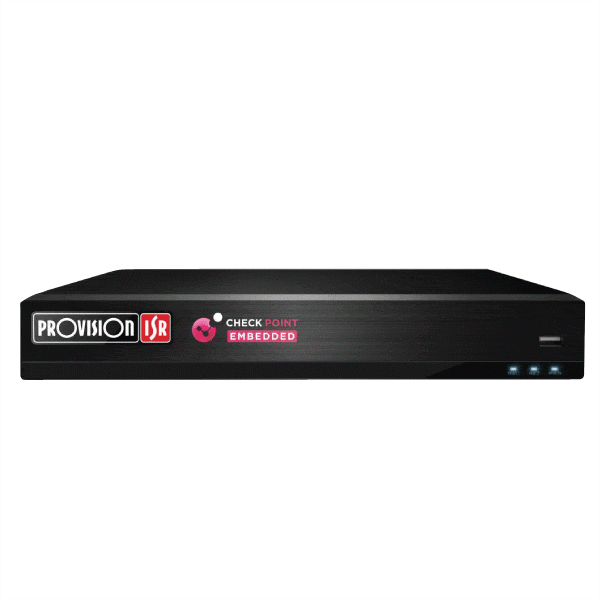

| דגם | NVR8-8200N |
| יצרן | Provision-isr |
| מאפיינים מיוחדים | הגנת Ceack-Point
אנליטיקה מתקדמת DDA, LPR and Fish-Eye support |
| Video Input | 8Ch over Network |
| Video Output | HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768) |
| Video View Mode | Mirrored |
| Decoding Capabilities | 1Ch – 8MP 4Ch – 2x8MP + 2x5MP 9Ch – 1MP |
| Audio Output | 1CH RCA (2.0 Vp-p, 1 kΩ) + IPC inputs |
| Compression | G.711A / G.711U |
| Two Way Audio | Yes |
| Analytics Channels | 8Ch (Requires supporting IPC) |
| Supported Analytics | Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object
Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR |
| Bandwidth Face Recognition Rate | N/A |
| Bandwidth Incoming | 80Mbps |
| Bandwidth Outgoing | 80Mbps |
| Bandwidth Real-Time Recording | 8CH 8MP Real-Time |
| Real-Time Recording | 8CH 8MP Real Time |
| Record Type | Video / Video + Audio |
| 8MP | 240FPS (NTSC)/200FPS (PAL) |
| 5MP and lower | 240FPS (NTSC)/200FPS (PAL) |
| Master stream over network | Up to 12CH@Recording Resolution |
| Resolution | Depends on IPC |
| Sub-Streams over Network | Up to Outgoing Bandwidth Capacity |
| General Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| User Access | 10Users Online with Professional Autorithy Management |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera.(All Limited to 4Ch Live View / Playback) |
| Plug-in based Web-Browser | Internet Exporer |
| Local Playback | 8Ch |
| Remote Playback (Web, App, VMS) | 8Ch |
| Search Mode | DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS |
| USB | 1USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm Input | N/A |
| Alarm Output | N/A |
| HDD Storage | 1 |
| Storage E-SATA | None |
| Max Capacity | Up to 8TB |
| RAID | N/A |
| Connection | Via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | Yes (C06 Keyboard Connection) |
| Network Ethernet | 10/100Mbps self-adaptive Ethernet interface |
| Network Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X,
SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profle T/G, ONVIF Version 20.12) |
| PoE Ports | N/A |
| PoE Speed | N/A |
| PoE Standard | N/A |
| PoE CCTV Mode | N/A |
| PoE Total Power | N/A |
| Max. Power Output (Per Ch.)PoE | N/A |
| Power Supply | DC12V/2A |
| Power consumption (No HDD) | 10W |
| מידות | W300xD250xH50mm |
| Operation Temperature | 0-50C |
