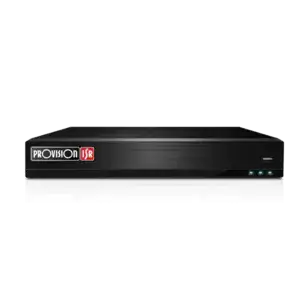

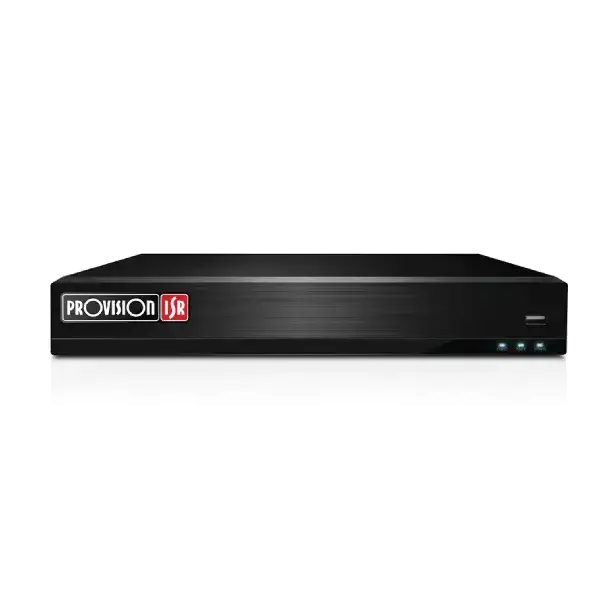

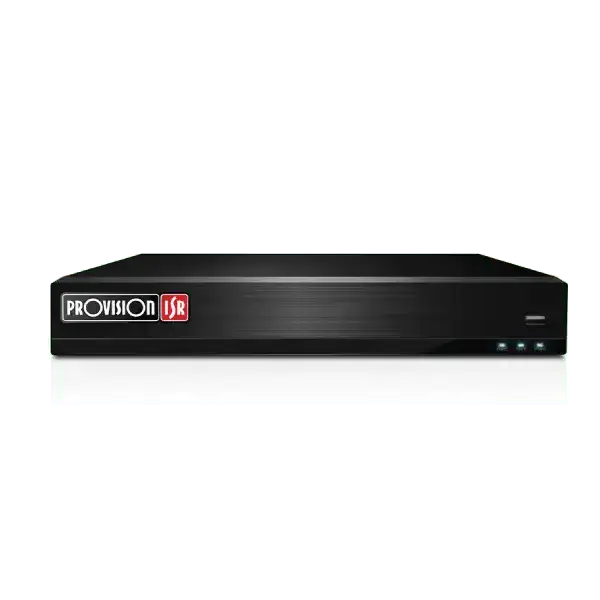

| דגם | NVR8-4100PN V2 |
| יצרן | Provision-ISR |
| מאפיינים מיוחדים | CHECK POINT EMBEDDED
אנליטיקה מתקדמת
DDA1
DDA2 |
| General | Quantum IoT Nano agent by Check Point |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, DynamicMemory Protection |
| NDAA Compliant | Yes |
| Video Input | 4Ch over Network |
| Output | HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768) |
| Fish-Eye Dewarp | Web Only |
| Decoding Forma | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch – 8MP 4Ch – 2MP |
| Audio-specs-Input | 1CH RCA (Linear, 1kΩ) + IPC inputs |
| audio-specs-Output | 1CH RCA (2.0 Vp-p, 1 kΩ) + IPC outputs |
| Compression | G.711A /G.711U |
| Two Way Audio | Yes |
| Supported Analytics | Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel
Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting
(DDA), Crowd Gathering, People Intrusion, Smart Search, LPR, Thermal |
| Analytics Channels (IPC Based) | 4Ch (Requires supporting IPC) |
| Analytic Channels (NVR Based) | Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection (or
their combinations) |
| Face Recognition Rate | N/A |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Real-Time Recording | 4CH 8MP Real-Time |
| Record Type | Video / Video + Audio |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of the combinations |
| 8MP | 120FPS(NTSC)/100FPS(PAL) |
| 5MP and lower | 120FPS(NTSC)/100FPS(PAL) |
| Master stream over network | Up to 4CH@Recording Resolution |
| Resolution substream | Depends on IPC |
| Max Channel View | 20Ch (Limited to Outgoing Bandwidth Capacity) |
| User Access | 64 Users online with Professional Authority Management |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera. |
| Plug-in based Web-Browse | Internet Explorer |
| Local | 4Ch |
| Remote | 4Ch |
| Search Mode | DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS |
| USB | 2 USB 2.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm-in | Based on IPC only |
| Alarm-out | Based on IPC only |
| HDD | 1 |
| E-Sata Support | No |
| RAID | N/A |
| PTZ Connection | Via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| Ethernet | 1000/ 100/ 10Mbps self-adaptive Ethernet interface |
| Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS,
820.1X, SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profile T/G, ONVIF Version 20.12 |
| PoE Ports | 4xRJ45 |
| Speed | 10/100Mbps (10Mbps under CCTV Mode) |
| Standard | PoE (IEEE802.3AF /AT) |
| CCTV Mode | Yes (Up to 200m and 10Mbps bandwidth) |
| Total Power | 48W (Average 12W per Channel |
| Max. Power Output (Per Ch.) | ~25.5W |
| Power Supply | DC 48V/1.36A |
| Power consumption (No HDD | 10W |
| Dimension | W300xD249xH45mm |
