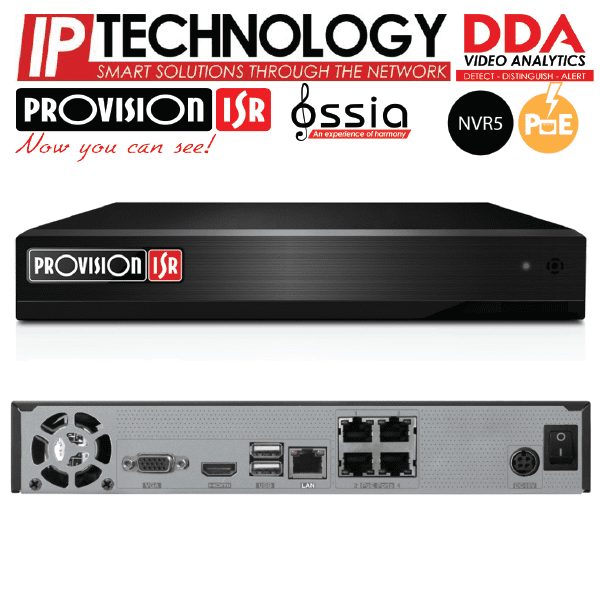

| דגם מכשיר הקלטה | NVR5-4100PX+(MM) |
| יצרן | Provision-ISR |
| Video Input | 4Ch Over Network / PoE Direct Connection |
| Video Output | HDMI / VGA (1080P, 1280×1024, 1024×768) |
| Video View Mode | Mirrored |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch – 5MP 4Ch – D1 |
| Audio Output | Based on IPC Only |
| Compression | G.711A/G.711U |
| Two Way Audio | No |
| Analytics Channels | 4Ch (Requires supporting IPC) |
| Supported Analytics | Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object
Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR
*DDA/LPR Analytics Live Snapshots are not supportedMonitoring, Object Counting (DDA), Crowd Gathering, P |
| Face Recognition Rate | N/A |
| Incoming | 24Mbps |
| Outgoing | 24Mbps |
| Real-Time Recording | 4CH 5MP Real-Time |
| Record Type | Video / Video + Audio |
| 8MP | N/A |
| 5MP and lower | 120FPS (NTSC)/100FPS (PAL) |
| Master stream over network | Up to 4CH@Recording Resolution |
| Resolution | Depends on IPC |
| Sub-Streams over Network | Up to Outgoing Bandwidth Capacity |
| General Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera.(All Limited to 4Ch Live View / Playback) |
| Plug-in based Web-Browser | Internet Exporer |
| Local Playback | 4Ch |
| Remote Playback (Web, App, VMS) | 4Ch |
| Search Mode | DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS |
| USB | 2 USB 2.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm Input | Based on IPC Only |
| Alarm Output | Based on IPC Only |
| HDD Storage | 1 |
| Storage E-SATA | None |
| Max Capacity | Up to 6TB |
| RAID | N/A |
| Connection | Via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | N/A |
| Network Ethernet | 10/100Mbps self-adaptive Ethernet interface |
| Network Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X,
SNMP, Auto Report (Ossia VMS) |
| PoE Ports | 4xRJ45 |
| PoE Speed | 10/100Mbps (10Mbps Under CCTV Mode) |
| PoE Standard | PoE (IEEE802.3AF) |
| PoE CCTV Mode | Yes (Up to 200m and 10Mbps bandwidth) |
| PoE Total Power | 50W (Average 12.5W per Channel) |
| Max. Power Output (Per Ch.)PoE | ~14W* |
| Power consumption (No HDD) | 5W |
| מידות | W255xD220xH45mm |
| Operation Temperature | 0-50C |

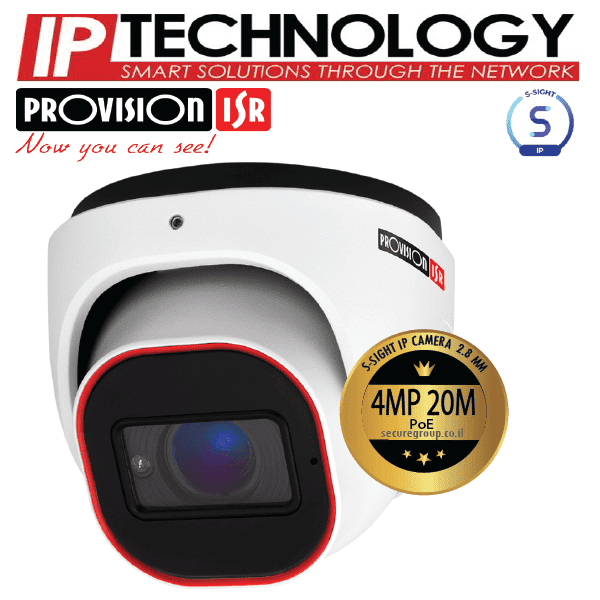

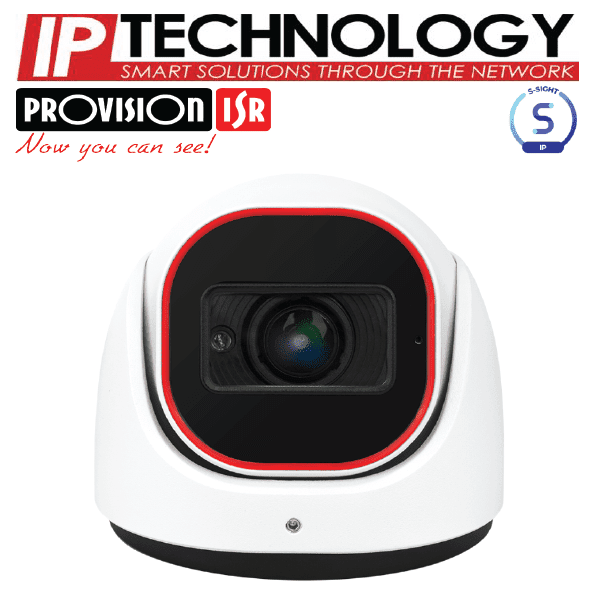

| דגם מצלמה | DI-340IPS-36 |
| Image Sensor | 1/2.7" CMOS (16:9) |
| Effective Pixels | 2560×1440 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day andamp Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.04lux (@F2.2, AGC On) 0lux with IR on |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, Brightness andamp Contrast Adjustable |
| Image Enhancement | Digital WDR, BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| אנליטיקה | General Analytics: Camera Tampering
Standard Analytics: Line Crossing, Sterile Area |
| Video Compression (דחיסה) | H.265 / H.264 / MJPEG (Sub-Stream Only) |
| רזולוציה | 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / D1 / QVGA /CIF |
| Multi-Stream | Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps)
Sub-Stream: 1MP (1~12/15fps) /QVGA/D1/CIF (1~30fps)
Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit rate | 64Kbps ~ 5Mbps@H.265 / 64Kbps ~ 5Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR Free adjustment under CBR |
| IR Distance | 20m (1 High Power IR LED) |
| עדשה | 3.6mm (89°) |
| Iris | Fixed Iris |
| Lens Mount | M12 mount |
| מוגן מים | Water Proof: IP67 |
| Bracket | 3-Axis Bracket |

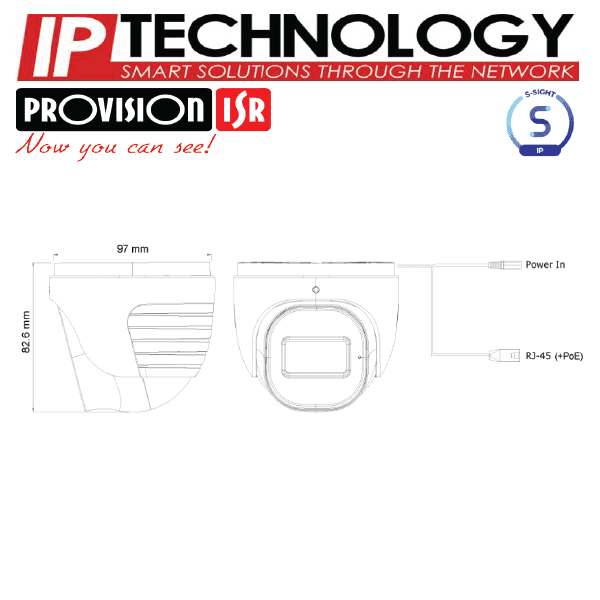

| Dimensions | Ø97mm×82.6mm |
| Weight (gross) | ~450g |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Analog Video Output | No |
| Audio Connectivity | Built-In Microphone (מיקרופון מובנה) |
| כרטיס זיכרון SD Card | Event/Schedule based Main/Sub-Stream recording (Up to 128Gb) |
| Hard Reset Button - לחצן איפוס | Yes |
| Alarm | No |
| Remote Monitoring | IE Browsing, CMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring for up to 4 users with multi-stream real time
transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP,
HTTPS, QoS |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~400mA / PoE/~5.2W |
| Work Environment | 30°C~60°C, 10%~90% Humidity |
| Junction Box | PR-JB12IP66, PR-JB12IP64, PR-WB-A – לא כלול |
